Insert Knives - Two Cutting Edges

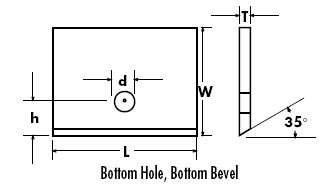

| Part Number | L | W | T | D | C |
|---|
| JD00751215T100A | 7.50 | 12.00 | 1.5 | 4.0 | |
| JD00801215T100A | 8.00 | 12.00 | 1.5 | 4.0 | |
| JD01001215T100A | 10.00 | 12.00 | 1.5 | 4.0 | |
| JD01501215T100A | 15.10 | 12.00 | 1.5 | 4.0 | |
| JD01901215T100A | 19.50 | 12.00 | 1.5 | 4.0 | |
| JD02000815T100A | 19.70 | 8.000 | 1.5 | 4.0 | |
| JD02001215T100A | 20.00 | 12.00 | 1.5 | 4.0 | |

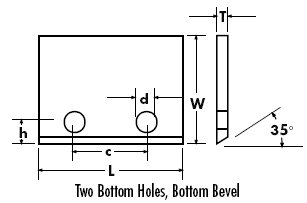

| Part Number | L | W | T | D | C |
|---|
| JD02501215T200A | 25.00 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD03001215T200A | 30.00 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD03001225T200A | 30.00 | 12.00 | 2.5 | 4.0 | 14.0 |
| JD04001215T200A | 40.00 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD04901215T200A | 49.50 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD05000915T200A | 50.00 | 9.00 | 1.5 | 4.0 | 26.0 |
| JD05001215T200A | 50.00 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD06001215T200A | 60.00 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD08013022T200A | 80.00 | 13.00 | 2.2 | 4.0 | 59.0 |
| JD10013022T200A | 100.00 | 13.00 | 2.2 | 4.0 | 59.0 |
| JD12013022T200A | 120.00 | 13.00 | 2.2 | 4.0 | 59.0 |
| Part Number | L | W | T | D | C |
|---|
| JD01205511T000A | 12.00 | 5.5 | 1.1 | | |
| JD01505511T000A | 15.00 | 5.5 | 1.1 | | |
| JD02005511T000A | 20.00 | 5.5 | 1.1 | | |
| JD03005511T000A | 30.00 | 5.5 | 1.1 | | |
| JD04005511T000A | 40.00 | 5.5 | 1.1 | | |
| JD05005511T000A | 50.00 | 5.5 | 1.1 | | |
| JD06005511T000A | 60.00 | 5.5 | 1.1 | | |
| Part Number | L | W | T | D | C |
|---|
| JD01951215T200L | 19.50 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD01951215T200R | 19.50 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD02951215T200L | 29.50 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD02951215T200R | 29.50 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD04951215T200L | 49.50 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD04951215T200R | 49.50 | 12.00 | 1.5 | 4.0 | 26.0 |
Insert Knives - four cutting edges
| Part Number | L | W | T | D | C |
|---|
| JD01201215F100A | 12.00 | 12.00 | 1.5 | 4.00 | |
| JD01401412F100A | 14.00 | 14.00 | 1.2 | 6.50 | |
| JD01401420F100A | 14.00 | 14.00 | 2.0 | 6.50 | |
| JD01401420F101A | 14.00 | 14.00 | 2.0 | 6.50 | |
| JD01401425F101A | 14.00 | 14.00 | 2.5 | 6.50 | |
| JD01501525F110A | 15.00 | 15.00 | 2.5 | 6.15 | |
| JD01501525F101A | 15.00 | 15.00 | 2.5 | 6.15 | |
| JD01501525F111A | 15.00 | 15.00 | 2.5 | 6.15 | |
| Part Number | L | W | T | D | C |
|---|
| JD03001215F200A | 30.00 | 12.00 | 1.5 | 4.0 | 14.0 |
| JD04001215F200A | 40.00 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD05001215F200A | 50.00 | 12.00 | 1.5 | 4.0 | 26.0 |
| JD08001322F200A | 80.00 | 13.00 | 2.2 | 4.0 | 59.0 |
| JD10001322F200A | 100.00 | 13.00 | 2.2 | 4.0 | 59.0 |
| JD12001322F200A | 120.00 | 13.00 | 2.2 | 4.0 | 59.0 |
| Part Number | L | W | T | D | C |
|---|
| JD01205511F000A | 12.00 | 5.5 | 1.1 | | |
| JD01505511F000A | 15.00 | 5.5 | 1.1 | | |
| JD02005511F000A | 20.00 | 5.5 | 1.1 | | |
| JD02505511F000A | 25.00 | 5.5 | 1.1 | | |
| JD03005511F000A | 30.00 | 5.5 | 1.1 | | |
| JD03505511F000A | 35.00 | 5.5 | 1.1 | | |
| JD04005511F000A | 40.00 | 5.5 | 1.1 | | |
| JD04505511F000A | 45.00 | 5.5 | 1.1 | | |
| JD05005511F000A | 50.00 | 5.5 | 1.1 | | |
| JD06005511F000A | 60.00 | 5.5 | 1.1 | | |
|
